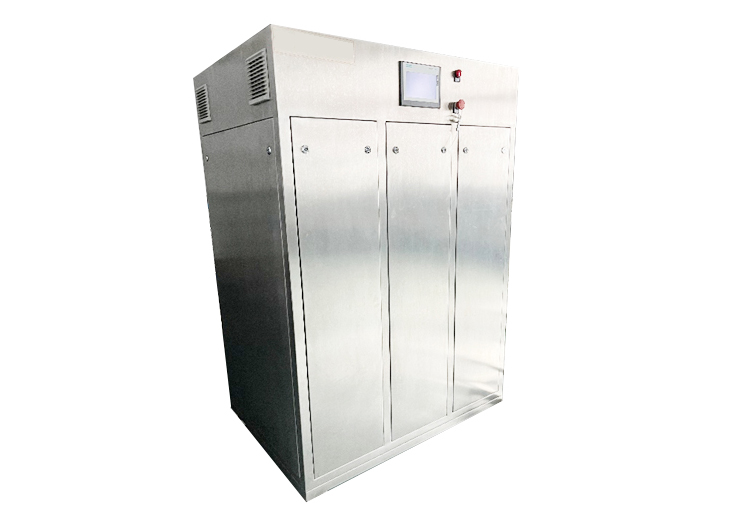

Pulse Light Sterilization Equipment

l  Liquid Sterilization

1. Currently widely used in the sterilization process of collagen, egg white, and various beverages;

2. Pulse strong light sterilization equipment is undergoing preliminary validation in industries such as beer and fruit drinks.

Advantages:

1. Cold sterilization technology, does not generate heat, does not damage the odor and taste of the liquid;

2. Low energy consumption, 90% lower than specific heat sterilization energy consumption;

3. Low cost, no maintenance required during use；

4. Easy to install and operate.

Appearance size: 1800X1000X1800mm      Voltage: 220V/50Hz

Equipment weight: ≤ 550Kg                 Power: 2KW

Environmental temperature: -10-40 ℃       Environmental humidity: ≤ 80%

Equipment Advantages:

1. The utilization rate of pulsed strong light tubes has been increased by 35%;

2. Smaller equipment size reduces footprint;

3. Modular design can upgrade sterilization configuration according to production needs.

Introduction of Sterilization Technology:

1. Adopting high-energy broadband pulsed xenon light (with a spectral range of 190nm-1200nm), its spectral energy is hundreds of times that of traditional ultraviolet light, instantly producing extremely high-energy visible light, ultraviolet, and multiple electromagnetic wave aggregation effects

2. High sterilization efficiency, capable of achieving a sterilization effect of over 99.999%

3. Low energy consumption, saving 80% -90% energy compared to traditional ultraviolet lamps

4. The module design is flexible and can adapt to different equipment production lines

5. Cold sterilization technology, especially suitable for sterilizing temperature sensitive items

6. Flexible control, start and stop immediately

7. No use of chemical reagents, no pollution or residue

Principles

Pulse light sterilization technology is a technique that uses strong white light flashing to sterilize. The generation of pulsed light requires two devices to complete:

(1) A release system for energy storage with power amplification function, which accumulates electrical energy for a relatively long time (a fraction of a second) and then releases it to do work in a short time (a millionth or a thousandth of a second), thus amplifying power. The result is that within the working cycle, only the average energy is consumed to obtain a relatively high peak energy, achieving instant sterilization.

(2) The photoelectric conversion system stores the generated pulse energy in an inert gas lamp and produces high-intensity instantaneous pulse light through ionization. The wavelength of pulsed light ranges from the ultraviolet region to the near-infrared region, with ultraviolet being the main band responsible for sterilization, while other bands have a certain synergistic effect.
