200-400W UV ballast 198-305V $100
Unit Price:$100.00
Model No.︰

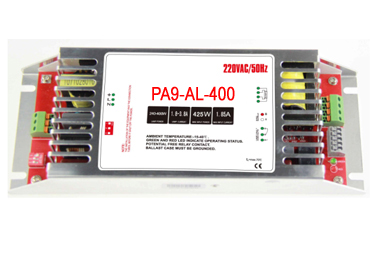

PA9-AL-400
Brand Name︰OEM
Country of Origin︰USA
Added time:2022-03-24
Product Details
Technical
specifications
Mains
voltage:220V/240V AC
Mains
Frequency：50/60Hz
Power
Factor:>0.98
Efficiency:>90%
Max.
Input Power: 425W
Max.
Input Current: 1.85A@230V
Preheat
Start
Dimension:
250*95*45mm
IP20
class
Working
Temperature: -15-40℃
Lamp
status indication via LED indication
Green
LED:Lamp on
Red
LED:Lamp fault
Lamp
status forwarding
Potential
free relay contacts for lamp on/lamp fault..
Installation
requirement
Wire
Gauge:0.5-1.5mm2
Max.cable
length between ballasts and lamp:5m
Relay
contacts:potential free,
Load:50…500mA
at 24…230V AC;
50…500mA
at 5…60V DC
Mounting
restrictions
Disconnect
Input Power Before Installing or Servicing.
Ballast
Case must Be Grounded.
Don’t
short any two wires of the four outputs.
Applications
All
areas of applications include UV lamps:
Air
purification
Municipal
water treatment
Industrial
water treatment
Water
injection for oilfield
|
Type
|
Input
Voltage(V)
|
Input
Power(W)
|
Input
Current(A)
|
Power
Per Lamp(W)
|
Lamp
Current(A)
|
Weight(kg)
|
|
PA9-AL-400
|
198-305
|
425
|
1.85A@230V
|
200-400
|
1.8-3.8
|
0.83
|
