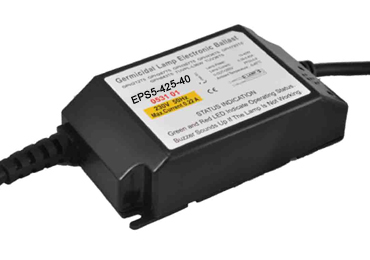

EPS5-425-40 UV ballast $8.5
Unit Price:$8.50
Model No.︰
EPS5-425-40
Brand Name︰Beasun
Country of Origin︰CHINA
Added time:2022-01-13
Product Details
Technical
Specifications
Mains
Frequency: 50/60Hz
Efficiency:
>90%
Operating
Frequency: 40-60KHz
Dimensions:
105*60*30mm
Lamp
status indication via LED indicators
Green
LED: lamp on
Red
LED: lamp fault
Buzzer
function: when the tube failure occurs buzzer will be intermittent sound.
Mounting
Restrictions
Disconnect
Input Power Before Installing or Servicing.
Don’t
short any two wires of the four outputs.
Features
Starting:
Preheat
Applications
e Air purification
e Aquarium
e Water treatment
Optional
Parts
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
EPS5-425-40
|
198-264
|
45
|
0.36A@230V
|
10-41
|
0.39-0.43
|
0.44
|
