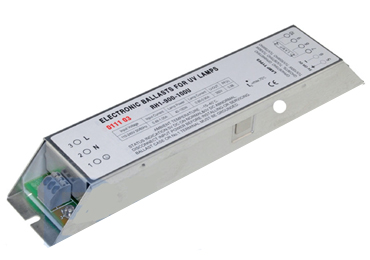

Beasun RH1-900-100U uv ballast $45
Unit Price:$45.00
Model No.︰
RH1-900-100U
Brand Name︰Beasun
Country of Origin︰USA
Added time:2021-08-21
Product Details
Technical Specifications
Mains Voltage: 99-264V
Mains Frequency: 50/60Hz
Power Factor: >0.99
Efficiency: >90%
Operating Frequency: 34KHz
Dimensions: 217*42*26mm
Installation Requirement
Wire Gauge: 0.5-1.5mm2
Max. cable length between ballasts and lamp: 3m
LED specification: Vf=1.8-3.6V If=5-20mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output
DC 5V±5% （5mA）: lamp on.
DC 0V: lamp fault or no lamp.
Connect LED.
Applications
e Air purification
e Industrial water treatment
e Kitchen purification
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
RH1-900-100U
|
198-264
|
90
|
0.65A@230V
|
55-95
|
0.75-0.85
|
0.22
|
