Product > ProductCatalog > Water treatment uv lamps

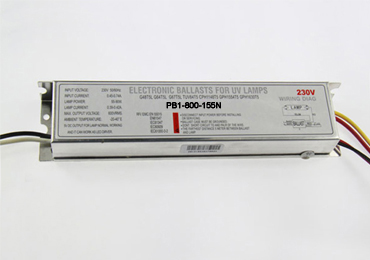

100-155W uv ballast 220-240V $40
Unit Price:$40.00
Model No.︰
PB1-800-155N
Brand Name︰OEM
Country of Origin︰USA
Added time:2018-12-03
Product Details
Technical Specifications
Mains Voltage: 110/240VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >90%
Operating Frequency: 40-60KHz
Dimensions: 135*60*30mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
Max. cable length between ballasts and lamp: 5m
LED specification: Vf=1.8-3.6V If=5-20mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output
DC 5V±5% （5mA）: lamp on.
DC 0V: lamp fault or no lamp.
Connect LED.
Applications
All areas of applications include UV lamps.
Air purification
Medical treatment
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
PB1-800-155N
|
220-240
|
155
|
0.75A@240V
|
100-155
|
0.8
|
0.43
|
