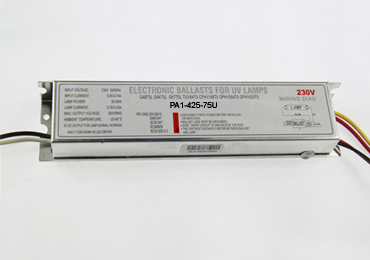

41-95W uv ballast 99-240V $35
Unit Price:$35.00
Model No.︰
PA1-425-75U
Brand Name︰OEM
Country of Origin︰USA
Added time:2018-12-03
Product Details
Technical Specifications
Mains Voltage: 110/240VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >90%
Operating Frequency: 40-60KHz
Dimensions: 135*60*30mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
Max. cable length between ballasts and lamp: 5m
LED specification: Vf=1.8-3.6V If=5-20mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output
DC 5V±5% （5mA）: lamp on.
DC 0V: lamp fault or no lamp.
Connect LED.
Applications
All areas of applications include UV lamps.
Air purification
Medical treatment
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
PA1-425-75U
|
99-240
|
90
|
0.425A@240V
|
41-95
|
0.4
|
0.40
|
