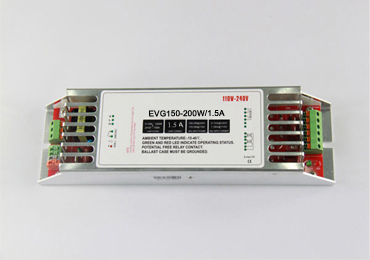

EVG150-200W/1.5A electronic Ballast $65
Unit Price:$65.00
Model No.︰
EVG150-200W/1.5A
Brand Name︰ZED EVG
Country of Origin︰EVG150-200W/1.5A
Added time:2018-05-23
Product Details
Technical Specifications
Mains Voltage: 110/240VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >92%
Operating Frequency: 40-60KHz
Dimensions: 250*65*40mm
Lamp status indication via LED
indication
Green LED: lamp on
Red LED: lamp fault
Lamp status forwarding
Potential free relay contacts for lamp
on/lamp fault.
Installation Requirement
Wire Gauge: 0.5-1.5mm2
Max. cable length between ballasts and
lamp: 5m
Relay contacts: potential free, load:
50…500mA at 24…230V AC;
50…500mA
at 5…60V DC
DC5V±5% 5mA: lamp on.
DC0V: lamp fault or no lamp. Connect
LED.
DC5V±10% Max. 50mA: lamp on.
DCOV: lamp fault or no lamp. Connect
Relay.
Mounting Restrictions
Disconnect Input Power Before Installing
or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four
outputs.
Features
Starting: Preheat
Applications
All areas of applications include UV
lamps.
Air purification
Industrial water treatment
Municipal water treatment
|
Type
|
Input Voltage
(V)
|
Input Power
(W)
|
Input Current
(A)
|
Power Per Lamp
(W)
|
Lamp Current
(A)
|
Weight (kg)
|
EVG150-200W/1.5A
|
99-264
|
164
|
1.50A@110V
0.68A@240V
|
57-150
|
1.4-1.6
|
0.53
|
