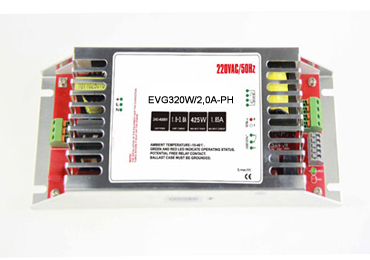

EVG320W/2,0A-PH UV ballast 99-264V $95
Unit Price:$95.00
Model No.︰
EVG320W/2,0A-PH
Brand Name︰ZED EVG
Country of Origin︰USA
Added time:2018-04-23
Product Details
Technical Specifications
Mains Voltage: 230VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >94%
Operating Frequency: 40-60KHz
Starting: Preheat
Dimensions: 250*95*45mm
Lamp status indication via LED indication
Green LED: lamp on
Red LED: lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault.
Installation Requirement
Wire Gauge: 0.5-1.5mm2
Max. cable length between ballasts and lamp: 5m
Relay contacts: potential free, load: 50…500mA at 24…230V AC;
50…500mA at 5…60V DC
DC5V±5% 5mA: lamp on.
DC0V: lamp fault or no lamp.
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Applications
All areas of applications include UV lamps.
Industrial water treatment
Municipal water treatment
Water injection for oilfield
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
EVG320W/2,0A-PH
|
99-264
|
341
|
1.49A@230V
|
80-325
|
2.0-2.2
|
0.83
|
