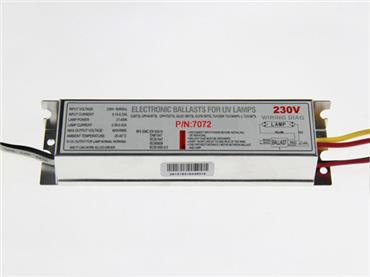

Ueberall AQUAFINE EVG 40W,PN:7072 electronic Ballast $40
Unit Price:$40.00
Model No.︰
EVG 40W,PN:7072
Brand Name︰EVG
Country of Origin︰USA
Added time:2021-03-04
Product Details
Technical Specifications
Mains Frequency: 50/60Hz
Efficiency: >90%
Operating Frequency: 40-60KHz
Dimensions: 165*38*29mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
LED specification: Vf=1.8-3.6V If=20-50mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output.
DC5V 5mA: lamp on.
DV0V: lamp fault or no lamp.
Applications
All areas of applications include UV lamps.
Air purification
Aquarium
Industrial water treatment
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
EVG 40W,PN:7072
|
198-264
|
45
|
0.21A@230V
|
10-41
|
0.39-0.43
|
0.11
|
