10W-41W UV ballast 21.6-26.4V $20
Unit Price:$20.00
Model No.︰
PD11-425-40D24
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Product Details
Technical Specifications
Efficiency: >87%
Operating Frequency: 40-60KHz
Starting: Rapid
Dimensions: 165*38*26mm
Installation Requirement
Wire Gauge: 0.5-1.5mm2
Max. cable length between ballasts and lamp: 1.5m
LED specification: VF=1.8-3.6V IF=20-50mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
For applications with less than one switch-on cycle per day
(Otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant start operation, need confirm with lam manufacturer.
Features
Lamp status indication via DC signal output.
DC3-6V 5mA: lamp on.
DC0-2V: lamp fault or no lamp.

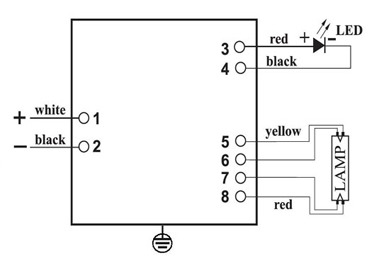

Connect LED
Applications
All areas of applications include UV lamps.
Air purification
Aquarium
Domestic drinking water
|
Type
|
Input Voltage
(V)
|
Input Power
(W)
|
Input
Current (A)
|
Power Per Lamp
(W)
|
Lamp Current
(A)
|
Weight (kg)
|
|
PD11-425-40D24
|
21.6-26.4
|
22-47
|
2.0
|
10-41
|
0.39-0.43
|
0.56
|
