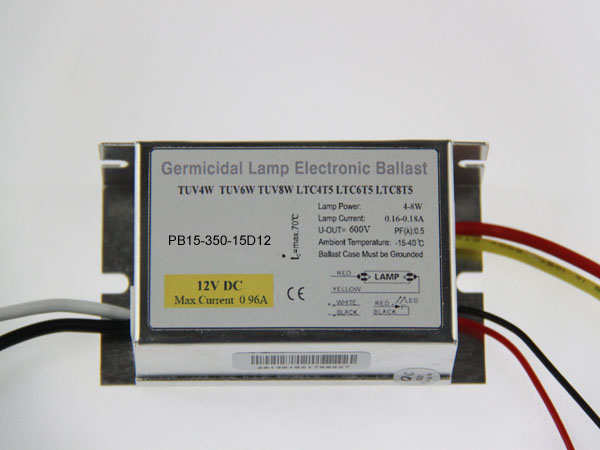

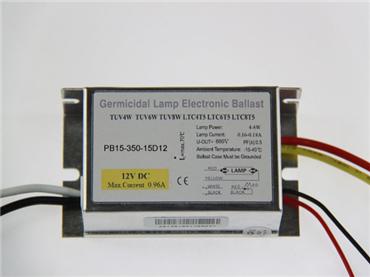

15W UV ballast 10.8-13.2V $15
Unit Price:$15.00
Model No.︰
PB15-350-15D12
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Product Details
Technical specifications
Efficiency:>70%
Operating Frequency:40-70kHz
Dimensions:85*43*27mm
Max.cable length between ballasts and lamp:1.5m
Installation requirement
Wire Gauge:0.5-1.0mm2
LDE specification:VF=1.8-3.6V IF=20-50mA
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don’t short any two wires of the four outputs.
For applications with less than one
Switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant
start operation,ask lamp manufacturer.
Features
Starting:Instant
Lamp status indication via DC signal output.
DC3-6V 5mA:lamp on.
DC0-2V:lamp fault or no lamp.
Applications
All areas of applications include UV lamps:
Air purification
Aquarium
Domestic drinking water
|
Type
|
Input Voltage(V)
|
Input Power(W)
|
Input Current(A)
|
Power Per Lamp(W)
|
Lamp Current(A)
|
Weight(kg)
|
|
PB15-350-15D12
|
10.8-13.2
|
21.4
|
1.78A@120V
|
15
|
0.30-0.35
|
0.15
|
