21W-79W UV ballast 99-132V $20
Unit Price:$20.00

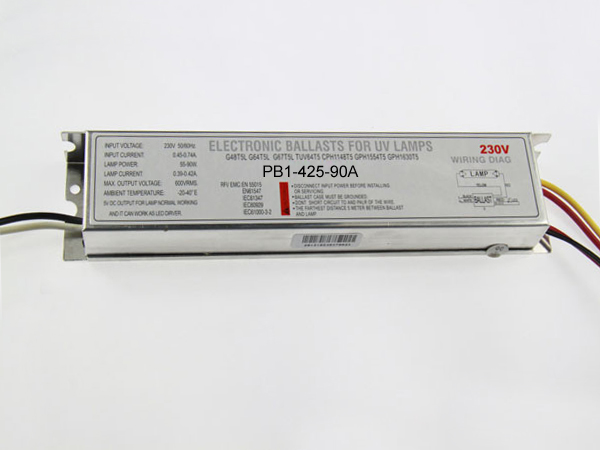

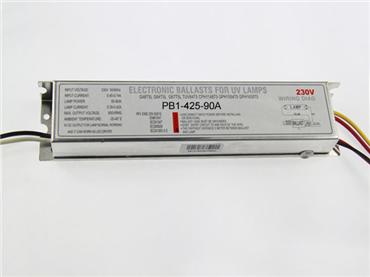

Model No.︰ PB1-425-90A
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Quantity

Product Details
Technical specifications

Mains Frequency50/60Hz

Power Factor:>0.55

Efficiency:>90%

Operating Frequency:40-70kHz

Starting:Instant

Dimensions:215*44*26mm

Input line length:430mm

Output line length:630mm

Signal line length:630mm

Installation requirement

Wire Gauge:0.5-1.0mm2

Max.cable length between ballasts and lamp:5m

LDE specification:VF=1.8-3.6V IF=20-50mA

Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case must Be Grounded.

Don’t short any two wires of the four outputs.

The yellow wire must be insulated when driving a lamp.

For applications with less than one

Switch-on cycle per day

(other otherwise preheat start ballasts are recommended)

Lamp filament must be suitable for instant start

operation,need confirm with lamp manufacturer.

Features

Lamp status indication via DC signal output.

DC3-6V 5mA:lamp on.

DC0-2V:lamp fault or no lamp.

Applications

All areas of applications include UV lamps:

Air purification

Aquarium

Industrial water treatment

Kitchen purification



Type

Input Voltage(V)

Input Power(W)

Input Current(A)

Power Per Lamp(W)

Lamp Current(A)

Weight(kg)

PB1-425-90A

99-132

87

1.3A@120V

21-79

0.39-0.43

0.35
