Product > ProductCatalog > Water treatment uv lamps

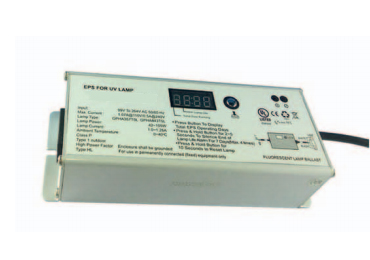

48W-55W UV ballast 99-264V $55
Unit Price:$55.00
Model No.︰ PA51-800-2/55U
Brand Name︰OEM
Country of Origin︰USA
Added time:2018-03-29
Quantity

Product Details
Technical specifications

Mains Voltage:110/240VAC

Power Factor:>0.98

Efficiency:>90%

Operating Frequency:40-60kHz

Starting:Preheat

Dimensions:204*70*45mm

Lamp status indication via LED indication

Green LED:Lamp on

Red LED:Lamp fault

Installation requirement

Wire Gauge:0.5-1.0mm2

Max.cable length between ballasts and lamp:5m

Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Don’t short any two wires of the four outputs.

Applications

All areas of applications include UV lamps:

Domestic drinking waster

Industrial water treatment



Type

Input Voltage(V)

Input Power(W)

Input Current(A)

Power Per Lamp(W)

Lamp Current(A)

Weight(kg)

PA51-800-2/55U

99-264

105-122

1.13A@110V

0.51A@240V

48-55

0.75-0.85

0.35
