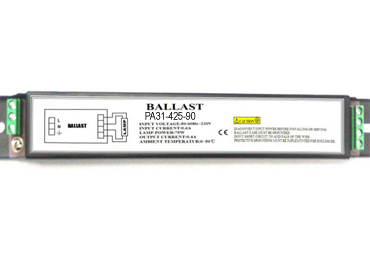

41W-79W UV ballast 198-264V $20
Unit Price:$20.00
Model No.︰
PA31-425-90
Brand Name︰OEM
Country of Origin︰USA
Added time:2024-11-12
Product Details
Technical specifications
Mains Voltage:230VAC
Mains Frequency:50/60Hz
Power Factor:>0.55
Efficiency:>90%
Operating Frequency:40-60kHz
Starting:Rapid
Dimensions:250*30*20mm
Installation requirement
Wire Gauge:0.5-1.0mm2
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
|
Type
|
Input Voltage(V)
|
Input Power(W)
|
Input Current(A)
|
Power Per Lamp(W)
|
Lamp Current(A)
|
Weight(kg)
|
|
PA31-425-90
|
198-264
|
90
|
0.7A@230V
|
41-79
|
0.39-0.43
|
0.14
|
