240W-320W UV ballast 198-264V $140
Unit Price:$140.00
Model No.︰
PA10-AL-2/320
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Product Details
Technical Specifications
Mains Voltage: 230VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >94%
Operating Frequency: 40-60KHz
Dimensions: 250*141*50mm
Lamp status indication via LED indication
Green LED: lamp on
Red LED: lamp fault

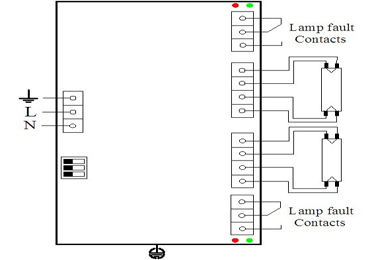

Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault.
Installation Requirement
Wire Gauge: 1.0-1.5mm2
Max. cable length between ballasts and lamp: 5m
Relay contacts: potential free, load: 50…500mA at 24…230V AC;
50…500mA at 5…60V DC
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Applications
All areas of applications include UV lamps.
Industrial water treatment
Municipal water treatment
Water injection for oilfield
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
PA10-AL-2/320
|
198-264
|
692
|
3.07A
|
2*240-320
|
1.8-2.2
|
1.17
|
