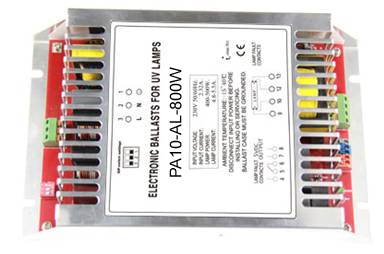

800W UV ballast 198-264V $260
Unit Price:$260.00
Model No.︰
PA10-AL-800W
Brand Name︰OEM
Country of Origin︰USA
Added time:2022-09-26
Product Details
Technical Specifications
Mains Voltage: 230VAC
Power Factor: >0.98
Efficiency: >94%
Operating Frequency: 40-60KHz
Starting: Preheat
Dimensions: 250*141*50mm
Lamp status indication via LED indication
Green LED: lamp on
Red LED: lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault.
Installation Requirement
Wire Gauge: 1.0-1.5mm2
Max. cable length between ballasts and lamp: 5m
Relay contacts: potential free, load: 50…500mA at 24…230V AC;
50…500mA at 5…60V DC
DC5V±5% 5mA: lamp on.
DC0V: lamp fault or no lamp.
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Applications
All areas of applications include UV lamps.
Industrial water treatment
Municipal water treatment
Water injection for oilfield
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
PA10-AL-800W
|
198-264
|
851
|
3.7A@230V
|
800W
|
7.0-8.0
|
1.2
|
