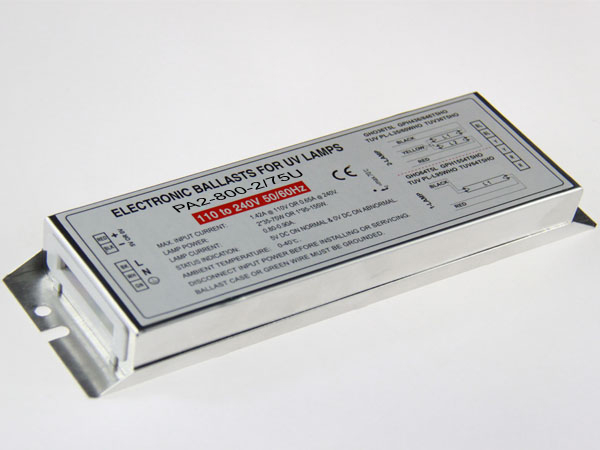

95W-155W UV ballast 99-264V $35
Unit Price:$35.00
Model No.︰
PA2-800-2/75U
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Product Details
Technical Specifications
Mains Voltage: 110/240VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >92%
Operating Frequency: 40-60KHz
Dimensions: 200*64*29mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
Max. cable length between ballasts and lamp: 5m
LED specification: VF=1.8-3.6V IF=5-20mA
(When it’s necessary, series current limiting resistor is needed.)
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output (Connected LED Requirement).
DC 5V±5% （5mA）: lamp on.
DC 0V: lamp fault or no lamp.
Applications
All areas of applications include UV lamps.
Air purification
Industrial water treatment
Kitchen purification
|
Type
|
Input Voltage (V)
|
Input Power
(W)
|
Input Current (A)
|
Power Per Lamp
(W)
|
Lamp Current (A)
|
Weight (kg)
|
|
PA2-800-2/75U
|
99-264
|
78-167
|
1.58A@110V
0.73A@240V
|
1*95-155
2*35-75
|
0.75-0.85
|
0.42
|
