UV Sensor UV1-I
Unit Price:$160.00
Model No.︰ UV1-I
Brand Name︰UV Sensor
Country of Origin︰USA
Added time:2024-09-24
Quantity

Product Details

UV Sensor, UVC Sensor, UV Detector, UV Eye Sensor, UV Radiation Sensor, UV Monitor, UV Controller, UV Index Monitor, UV Power Monitor Sensor, UV Level Sensor

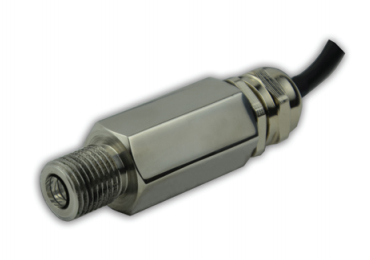

Waterproof UVC Sensor

Monitoring of relative/absolute UV-intensity

The waterproof UVC sensor serves as robust, long-time stable measuring head of the precise measurement of UVC irradiances in UV water disinfection systems and UV air purification systems.

A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.

Sensor Type

Signal

Output Value

Spectral Range

Load Impedance

Suitable Monitor Types

UV1-I

Current output

4-20mA

210-280nm

>1KΩ

PLC or other equipment

The sensor can be directly connected to the PLC or other equipment via a 2.5 meter long (standard) shielded cable. Thus integration into UV lamp monitoring, adjustment and control is possible.

Technical Data

Measuring range: 20mW/cm2

Resolution: 0.01mW/cm2


Weight: 150g

Operating temp.: 0-60℃

Storage temp.: -10-70℃

Humidity: <80%

Supply voltage: 12V or 24V DC

Body: Stainless Steel 316L

Max. Pressure: 10bar

Cable: Length 2.5m (longer on request)
