UV Sensor, UVC Sensor, UV Detector UV3-U $160
Unit Price:$160.00
Model No.︰
UV3-U
Brand Name︰UV Sensor
Country of Origin︰USA
Added time:2024-09-24
Product Details

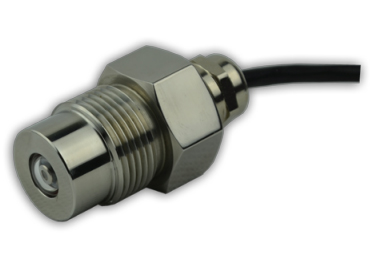

Waterproof UVC Sensor
Monitoring of relative/absolute UV-intensity
The waterproof UVC sensor serves as robust, long-time stable measuring head of the precise measurement of UVC irradiances in UV water disinfection systems and UV air purification systems.
A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.
Sensor Type
|
Signal
|
Output Value
|
Spectral Range
|
Load Impedance
|
UV3-U
|
voltage output
|
0-5V
|
210-280nm
|
>1KΩ
|
The sensor can be directly connected to the UV-Monitor UV-1, UV-2, UV-3, UV-4, or UV-5 via a 2.5 meter long (standard) shielded cable. Thus integration into UV lamp monitoring, adjustment and control is possible.
Technical Data
Measuring range: 20mW/cm2
Resolution: 0.01mW/cm2
Weight: 240g
Operating temp.: 0-60℃
Storage temp.: -10-70℃
Humidity: <80%
Supply voltage: 5V DC
Body: Stainless Steel 316L
Max. Pressure: 10bar
Cable: Length 2.5m (longer on request)
We support retail and wholesale. Any questions, please email: service@uvebay.com
