UV Sensor, UVC Sensor, UV Detector UV2-U $160
Unit Price:$160.00
Model No.︰ UV2-U
Brand Name︰UV Sensor
Country of Origin︰USA
Added time:2024-09-24
Quantity

Product Details

UV Sensor, UVC Sensor, UV Detector, UV Eye Sensor, UV Radiation Sensor, UV Monitor, UV Controller, UV Index Monitor, UV Power Monitor Sensor, UV Level Sensor

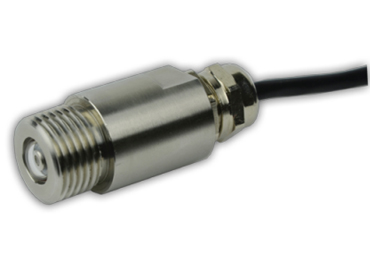

Waterproof UVC Sensor

Monitoring of relative/absolute UV-intensity

The waterproof UVC sensor serves as robust, long-time stable measuring head of the precise measurement of UVC irradiances in UV water disinfection systems and UV air purification systems.

A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.

Sensor Type

Signal

Output Value

Spectral Range

Load Impedance

UV2-U

voltage output

0-5V

210-280nm

>1KΩ

The sensor can be directly connected to the UV-Monitor UV-1, UV-2, UV-3, UV-4, or UV-5 via a 2.5 meter long (standard) shielded cable. Thus integration into UV lamp monitoring, adjustment and control is possible.

Technical Data

Measuring range: 20mW/cm2

Resolution: 0.01mW/cm2


Weight: 180g

Operating temp.: 0-60℃

Storage temp.: -10-70℃

Humidity: <80%

Supply voltage: 5V DC

Body: Stainless Steel 316L

Max. Pressure: 10bar

Cable: Length 2.5m (longer on request)
