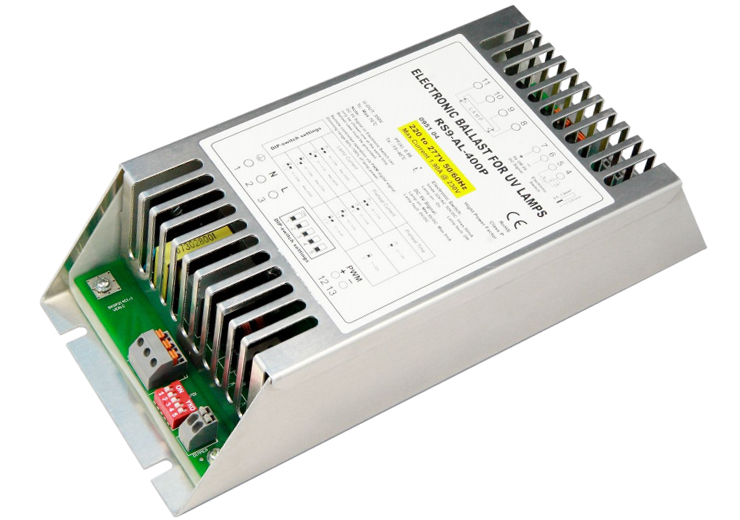

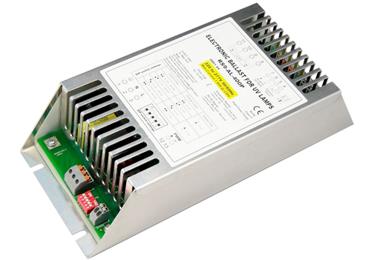

RS9-AL-400P UV BALLAST Electrical Specification
Input Mains Voltage: 220~277V±10%
Input Line Frequency: 47~63Hz
Input Current: Max.1.90A at 230Vrms
Input Power: 275~420W
Power Factor: 0.98 typ.
Output Frequency: >25KHz
Crest Factor: <1.7
Current THD: <10% typ.
Preheat Time: Optional 12S,20S
Preheat Current: Optional
2.5A,3.0A,3.5A,4.0A
Output Current: Optional
2.8A,3.1A,3.8A,3.8A typ.
Lamp
Power: 260~400W
Lamp Type:
300W/2.8A , 260W/3.1A
270W/3.8A , 400W/3.8A
Efficiency: 95% Max. load
Power Dimming Range: 60~100% Power at D20~100%
PWM Signal: 5V or 12V, 200~1kHz
Status Indication: Green and red LED
Features & Functions
Signal Output: Max.5V/DC, Max.5mA
Electronic Switch:
Vmax.32V/AC,50V/DC,Imax.50mA
Preheat Start Protections: Lamp Open /
Fault
Limiting Current and Power Tc-temperature: Max. 70℃
Lamp Open Protection Ta-temperature: -15~40℃
Lamp Fault Protection Storage: -40~85℃
PWM Dimming Interface Approvals: CE (
LVD EMC )
Status Indication: IP Code: IP20
Green and red LED
indicate operation status Dimensions: 250×108×57mm
DC 5V Signal Note
Lamp on: Max.5V/DC, Max.5mA, Lamp fault: 0V
Electronic
Switch
Lamp on: On , Lamp fault: Off
DC 5V Output or
Electronic switch can only be chosen
Once the DIP is
setted up, please do not make any change, otherwise the
lamps may be damaged.
When the Tc
temperature is over 70℃, please add
a heat-dissipation device. one at the same time.
|
Type
|
Input Voltage(V)
|
Input Power(W)
|
Input Current(A)
|
Power Per Lamp(W)
|
Lamp Current(A)
|
Weight(kg)
|
|
RS9-AL-400P
|
198-305
|
275-420W
|
1.90A@230V
|
260-400W
|
2.8-3.8
|
1.17
|
