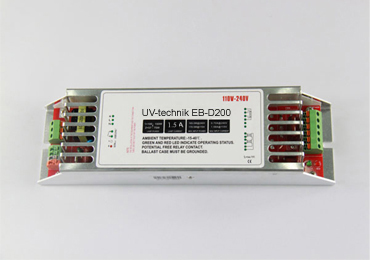

UV-technik EB-D200 UV Electronic ballast $65
Unit Price:$65.00
Model No.︰ EB-D200
Brand Name︰UV-technik
Country of Origin︰USA
Added time:2016-11-19
Quantity

Product Details

Technical Specifications

Mains Voltage: 110/240VAC

Mains Frequency: 50/60Hz

Power Factor: >0.98

Efficiency: >92%

Operating Frequency: 40-60KHz

Dimensions: 250*65*40mm

Lamp status indication via LED indication

Green LED: lamp on

Red LED: lamp fault

Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault.

Installation Requirement

Wire Gauge: 0.5-1.5mm2

Max. cable length between ballasts and lamp: 5m

Relay contacts: potential free, load: 50…500mA at 24…230V AC;

                                50…500mA at 5…60V DC

DC5V±5% 5mA: lamp on.

DC0V: lamp fault or no lamp. Connect LED.

DC5V±10% Max. 50mA: lamp on.

DCOV: lamp fault or no lamp. Connect Relay.

Mounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

Features

Starting: Preheat

Applications

All areas of applications include UV lamps.

e      Air purification

e      Industrial water treatment

e      Municipal water treatment

Type

Input Voltage (V)

Input Power

(W)

Input Current (A)

Power Per Lamp

(W)

Lamp Current (A)

Weight (kg)

UV-technik EB-D200

99-264

217

1.98A@110V

0.90A@240V

200

2.0-2.2

0.53
