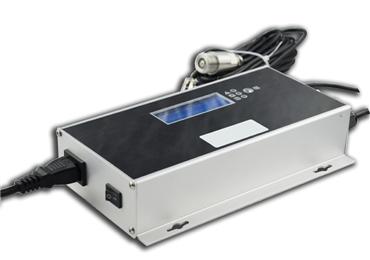

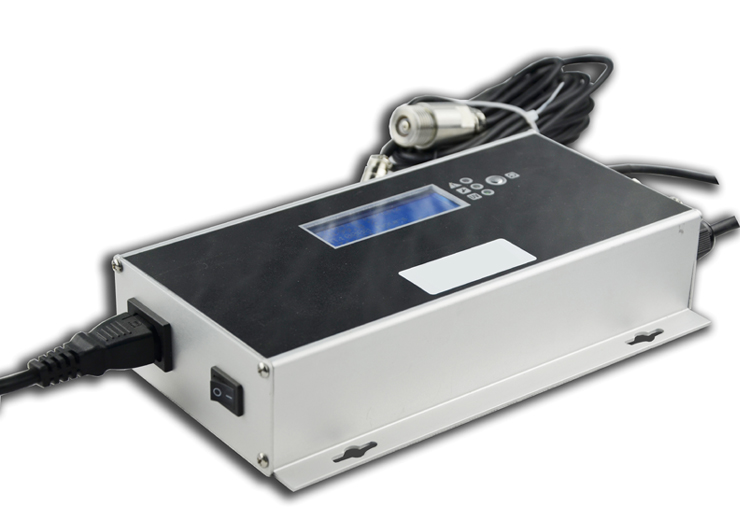

Features
for one-lamp operation, preheat start
to be used with four-wire lamps
UV Sensor with 254nm, 0~20000uW/cm2
UV intensity status indication
via LED indicators and fault contact green led: >70%; yellow led: 50~70%;
red led: <50%
LCD display: sensor status, lamp
status, temperature of box
status forwarding
potential free relay contacts for UV
intensity repay activeted: <50% of UV intensity
potential
free, load: 50~500mA at 24~277V AC or 5~30V DC > reset relative value of UV
intensity to 100%
> UV sensor: UV1-I, UV2-I, UV3-I
Technical Data
|
Lamp power:
|
40~100W
|
|
Lamp type:
|
GPH212~843T5L/HO
|
|
|
TUV36T5L/HO,TUV75W
|
|
Lamp current:
|
0.75~0.85A
|
— — — — — — — — — — — — — — — —
|
Mains voltage:
|
99~264VAC 50/60Hz
|
|
Efficiency.:
|
>90%
|
|
Operating frequency:
|
40~60KHz
|
|
Power factor:
|
>0.9 typ.
|
|
Ambient temperature:
|
0~40oC
|
|
Tc-temperature:
|
Max. 70oC
|
|
Dimensions:
|
245X150X53mm
|
|
Weight:
|
2.0Kg
|
Mounting Restrictions
Disconnect input power before
installing or servicing Ballast case must be grounded
Don’t
short any two wires of the input and output wires For indoor use only
01: Set the relative value of UV intensity to 100% 02: Lamp life
9000 hours
