Product > ProductCatalog > Water treatment uv lamps

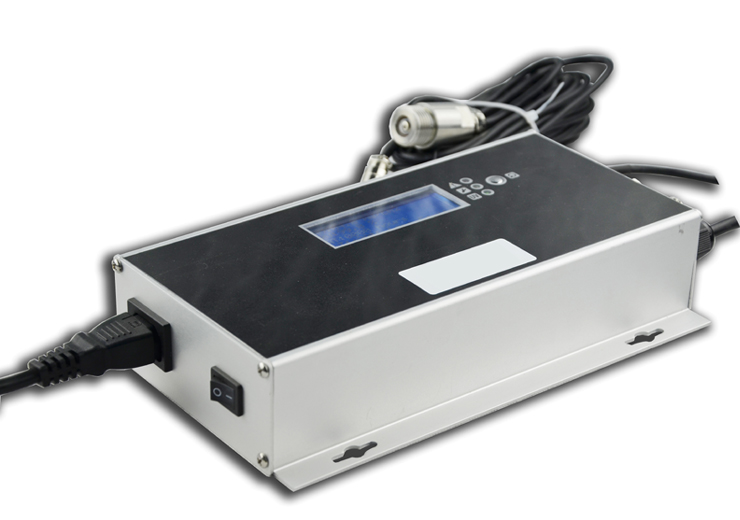

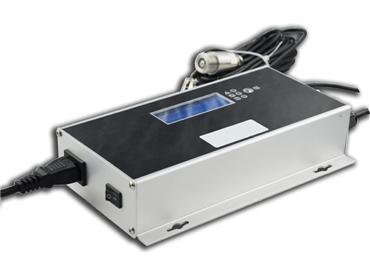

UV ballast with sensor 10-40W $350
Unit Price:$350.00
Model No.︰
UVS40W/425mA/B
Brand Name︰OEM
Country of Origin︰USA
Added time:2016-10-13
Product Details
Features
for one-lamp operation, preheat start
to be used with four-wire lamps
UV Sensor with 254nm, 0~20000uW/cm2
UV intensity status indication
via LED indicators and fault contact green led: >70%; yellow led: 50~70%;
red led: <50%
LCD display: sensor status, lamp
status, temperature of box
status forwarding
potential free relay contacts for UV
intensity repay activeted: <50% of UV intensity
potential
free, load: 50~500mA at 24~277V AC or 5~30V DC > reset relative value of UV
intensity to 100%
> UV sensor: UV1-I,UV2-I, UV3-I
> RS485 function
Technical Data
|
Lamp power:
|
10~40W
|
|
Lamp type:
|
GPH212~893T5L
|
|
|
TUV36T5L,TUV36W
|
|
Lamp current:
|
0.38~0.43A
|
— — — — — — — — — — — — — — — ——
— —
|
Mains voltage:
|
99~264VAC 50/60Hz
|
|
Efficiency.:
|
>90%
|
|
Operating frequency:
|
40~60KHz
|
|
Power factor:
|
>0.9 typ.
|
|
Ambient temperature:
|
0~40oC
|
|
Tc-temperature:
|
Max. 70oC
|
|
Dimensions:
|
245X150X53mm
|
|
Weight:
|
2.0Kg
|
Mounting Restrictions
Disconnect input power before
installing or servicing Ballast case must be grounded
Don’t
short any two wires of the input and output wires For indoor use only
Part Number: 20168001
Press the buttom
more than 5 seconds for the default value Setting:
01: Set the relative value of UV intensity to 100% 02: Lamp life
9000 hours
