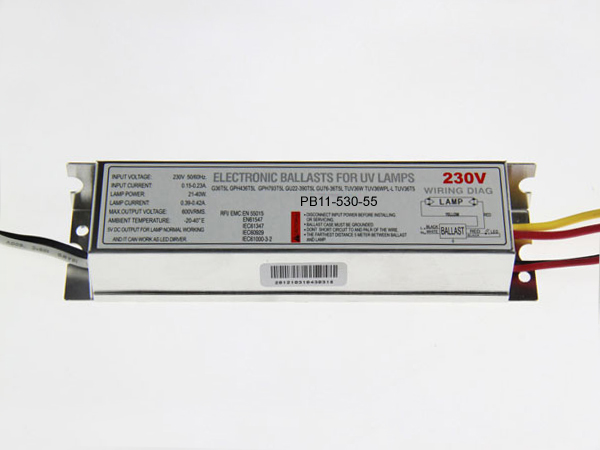

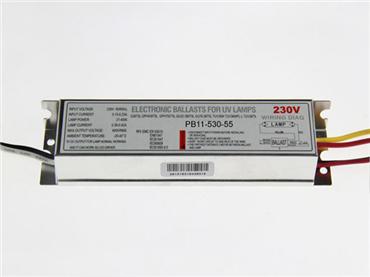

55W UV ballast 198-264V $20
Unit Price:$20.00
Model No.︰
PB11-530-55
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Product Details
Technical specifications
Mains Frequency：50/60Hz
Power Factor:>0.55
Efficiency:>90%
Operating Frequency:40-70kHz
Dimensions:162*42*26mm
Input line length:430mm
Output line length:480mm
Signal line length:480mm
Installation requirement
Wire Gauge:0.5-1.0mm2
LDE specification:VF=1.8-3.6V IF=20-50mA
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don’t short any two wires of the four outputs.
For applications with less than one
Switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant start
operation,ask lamp manufacturer.
Features
Starting:Instant
Lamp status indication via DC signal output.
DC3-6V 5mA:lamp on.
DC0-2V:lamp fault or no lamp.
Applications
All areas of applications include UV lamps:
Air purification
Aquarium
Industrial water treatment
|
Type
|
Input Voltage(V)
|
Input Power(W)
|
Input Current(A)
|
Power Per Lamp(W)
|
Lamp Current(A)
|
Weight(kg)
|
|
PB11-530-55
|
198-264
|
61
|
0.49A@230V
|
55
|
0.47-0.53
|
0.21
|
